Introduction

Gear motors—compact devices that combine a motor and a gear train—are the unsung heroes of modern automobiles. From power steering to electric parking brakes, these components deliver precise torque and speed control while keeping size, weight, and cost in check. As automotive manufacturers push toward higher efficiency, tighter packaging, and greater reliability, understanding the principles behind gear motor design and how different models perform in real‑world scenarios becomes essential.

Foundations of Gear Motor Design

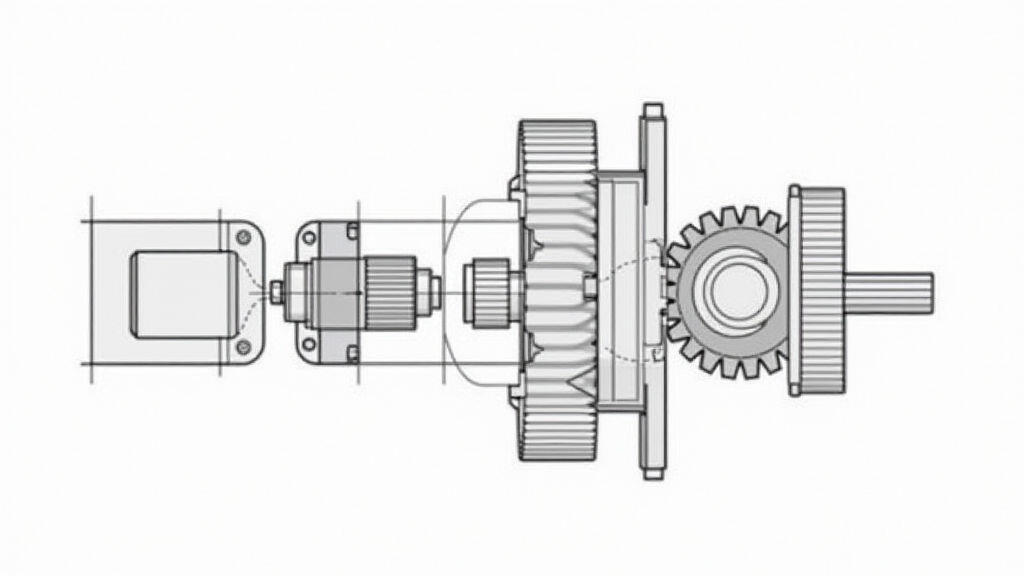

At its core, a gear motor consists of an electric motor (often a brushless DC or permanent‑magnet synchronous motor) and a set of gears that alter the motor’s speed and torque. The motor’s low-speed, high-torque output is then increased or decreased by the gear ratio. The design challenge lies in matching the motor’s electrical characteristics with the mechanical demands of the application.

Three key principles guide gear motor modeling:

1. Torque–Speed Relationship – The motor’s torque decreases linearly as speed rises, while the gear train multiplies torque and reduces speed. The combined system must meet the vehicle’s load profile.
2. Efficient Power Transfer – Losses occur in the motor’s windings, magnetic cores, and within gear mesh. Modeling aims to minimize these losses through material selection and gear geometry.
3. Dynamic Response – Sudden changes in vehicle demand (e.g., rapid acceleration or a high‑speed brake) require rapid torque output. Models incorporate inertia, damping, and control strategy to predict transient behavior.

Modeling Techniques for Performance Prediction

Engineers employ several modeling approaches to forecast gear motor performance:

• Electrical Equivalent Circuit Models – These simplified representations replace complex magnetic fields with resistors, inductors, and voltage sources. They are ideal for quick calculations of current, voltage, and power loss.
• Finite Element Analysis (FEA) – By discretizing the motor and gear components into small elements, FEA provides detailed insights into magnetic flux densities, temperature rises, and stress distributions. It’s computationally intensive but indispensable for high‑precision design.
• Multi‑Physics Coupling – Modern simulation packages integrate thermal, magnetic, and mechanical analyses, enabling designers to study heat dissipation, gear mesh forces, and vibration simultaneously.

Each method balances detail, accuracy, and computation time, allowing manufacturers to iterate quickly and validate designs before building prototypes.

Performance Metrics: What Counts in Automotive Applications?

When comparing gear motor models, several metrics are critical:

Comparative Study of Two Popular Models

Below, a simplified comparison distills extensive research conducted on two widely used gear motor families in automotive production: the Model A and Model B.

• Model A (High‑Efficiency Block)
  • Rated torque: 15 Nm
  • Peak torque: 25 Nm
  • Efficiency: 89 %
  • Operating temperature: up to 95 °C
  • Weight: 0.8 kg
• Model B (High‑Torque Compact)
  • Rated torque: 18 Nm
  • Peak torque: 30 Nm
  • Efficiency: 85 %
  • Operating temperature: up to 110 °C
  • Weight: 0.9 kg

While Model A edges out slightly in efficiency and heat tolerance, Model B offers superior torque performance at a marginally higher weight. The choice boils down to the application: power steering may prioritize efficiency, whereas an electric parking brake may favor peak torque.

Real‑World Automotive Use Cases

1. Hybrid Power Steering – The semi‑automatic steering system requires a gear motor that can deliver smooth torque strokes while reducing energy consumption. The high‑efficiency Model A is favored in many markets.

2. Electric Vehicle (EV) Seat Adjustment – Seat motors demand precise speed control and wasted-energy minimization. Here, the low noise and compactness of Model A shine.

3. High‑Performance Braking – Some automotive manufacturers employ electrically driven brake calipers. The robustness of Model B, with its higher peak torque and tolerance to heat, makes it a better fit.

Future Trends in Gear Motor Development

As electrification deepens, several trends are set to shape gear motor evolution:

1. Materials Engineering – Incorporating high‑temperature alloys and advanced composites can suppress heat loss and reduce weight.
2. Integrated Control Electronics – Combining the drive electronics directly onto the motor housing minimizes wiring complexity and improves reliability.
3. Smart Diagnostics – Embedded sensors that monitor temperature, vibration, and electrical health allow predictive maintenance, reducing downtime.
4. Additive Manufacturing – 3D printing of gear teeth and motor housings enables tailored micro‑structures for improved load distribution.

These innovations promise lighter, more efficient, and smarter gear motors that can meet the demanding performance and safety standards of next‑generation vehicles.

Conclusion

In the automotive parts ecosystem, gear motors stand as a testament to engineering finesse—compressing complex electrical and mechanical processes into a compact, reliable package. By mastering modeling principles, focusing on critical performance metrics, and aligning design choices with application needs, manufacturers can select motors that enhance vehicle efficiency, safety, and passenger comfort.

Looking ahead, advances in materials, electronics integration, and manufacturing techniques herald a new era of gear motors that will be lighter, smarter, and more adaptable than ever before. As automotive trends evolve toward higher electrification and autonomy, these motors will play a pivotal role in delivering the seamless performance and reliability that drivers—and the industry at large—now expect.
